Portable Membrane Biogas Plant (PMBP)
The Portable Membrane Biogas Plant (PMBP), is a transformative solution for managing both domestic and industrial organic waste. These units efficiently convert organic waste into biogas, a renewable energy source primarily composed of Methane and Carbon Dioxide. By capturing Methane through anaerobic digestion, the PMBP significantly reduces Greenhouse Gas emissions.
The biogas serves multiple purposes, for it provides affordable cooking fuel, reduces dependence on firewood and charcoal and thereby preserving forests. Moreover, the biogas can be utilized as green energy to power appliances and machinery, promoting sustainable practices across various sectors.
In essence, our PMBP not only addresses the waste management challenge but also contributes to Environmental Conservation and Sustainable Energy use, making it a vital tool in today’s quest for eco-friendly solutions.
![Portable Membrane Biogas Plant Brochure Portable Membrane Biogas Plant Brochure](https://i0.wp.com/ecoholdingslimited.com/wp-content/uploads/2024/07/pbp.jpg?resize=598%2C291&ssl=1)

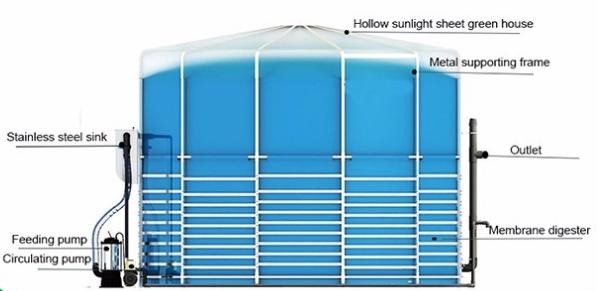

The digester is consist of a greenhouse made from tinted sheet, metal support frame, membrane digester and gas storage compartment, stainless steel inlet and outlet, bio-gas filter and pump.
![38](https://i0.wp.com/ecoholdingslimited.com/wp-content/uploads/2024/07/38.png?resize=500%2C500&ssl=1)
Read More ... Portable Membrane Biogas Plant (PMBP)

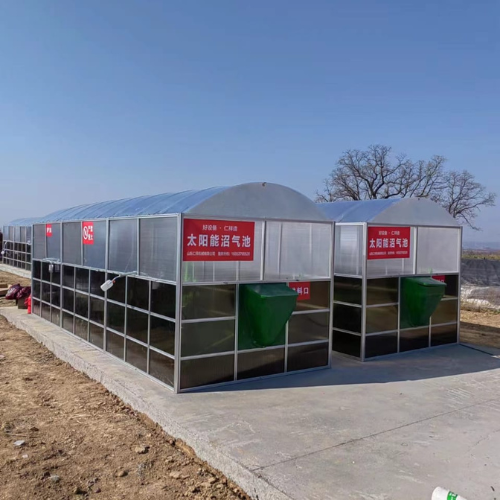

Our Portable Membrane Biogas Plant (PMBP), is a cutting-edge Methane digester designed for small and large-scale waste management processes without the need for extensive ground level excavation or construction. This surface-mount unit boasts a streamlined assembly process, typically requiring just 48 hours with a trained installation team for its assembly.
The PMBP includes a robust structure comprising a tinted sheet greenhouse, a sturdy metal support frame, a membrane digester, and a gas storage compartment. It also incorporates stainless steel inlets and outlets, a bio-gas filter, and a pump for optimal functionality.
Benefits and Impact:
- Mitigation of Methane Emissions: By capturing Methane produced during the anaerobic digestion process, the PMBP significantly reduces greenhouse gas emissions. Methane is a potent contributor to Climate Change, and converting it into biogas for energy use mitigates its environmental impact.
- Environmental Pollution Control: The PMBP plays a crucial role in waste management by converting organic waste into biogas. This process not only minimizes waste accumulation but also prevents the release of harmful pollutants into the environment, thereby improving air and water quality.
- Biogas Production for Energy: Organic waste processed in the PMBP is converted into biogas, a renewable energy source composed mainly of Methane and Carbon Dioxide. This biogas can be used for cooking, heating, electricity generation, or even as a vehicle fuel, providing a sustainable alternative to fossil fuels.
- Enhanced Agricultural Benefits: The residual digestate from the PMBP serves as a nutrient-rich biofertilizer. When applied to agricultural fields, it improves soil fertility, enhances crop yields, and reduces the need for synthetic fertilizers. This closed-loop system supports sustainable agriculture practices and promotes soil health.
- Compact and Efficient Design: Designed for ease of installation and operation, the PMBP’s compact footprint makes it suitable for diverse settings, including agricultural farms, food processing facilities, and municipal waste treatment plants. Its efficient operation ensures maximum biogas production with minimal maintenance requirements.
Our Portable Membrane Biogas Plant represents our commitment to innovative solutions that address environmental challenges while promoting sustainable development. By harnessing the power of anaerobic digestion, we empower communities and industries to manage organic waste responsibly, reduce carbon footprints, and contribute to a cleaner, greener future.
Portable Membrane Biogas Plant Specification
PMBP-1 | PMBP-3 | PMBP-15 | PMBP-66 | PMBP-260 | PMBP-1380 | |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Build Up Area | 1.18M³ | 3.4M³ | 15M³ | 66M³ | 260M³ | 1380M³ |
Dimension (Meter) | 1.2(L)0.8(W)1.23(H) Rectangular | 1.56(L)1.2(W)1.95(H) Rectangular | 2.9(D)2.5(H) Cylindrical |
5.9(D)3(H) Cylindrical |
8(D)5.72(H) Cylindrical | 16(D)7.46(H) Cylindrical |
Water Level (Meter) | 0.5 | 1.1 | 1.25 | 2 | 4 | 4 |
Digester Capacity (M³) | 0.5 | 1.7 | 8.3 | 54.38 | 200 | 800 |
Gas Storage (M³) | 0.5 | 1.3 | 6.2 | 6.2 | 50 | 400 |
Gas Produce (M³/day) | 0.5 | 2 | 8 | 33.21 | 200 | 800 |
Land Space (M²) | 0.96 | 1.87 | 6.63 | 8.4 | 64 | 200.96 |
Concrete Flooring (M²) | 0.96 | 1.87 | 6.63 | 8.4 | 64 | 200.96 |
Shipping Volume (M³) 0.3 0.5 3 4.5 8 30
Waste Treat Per Day
Food Waste (kg) | 6.25 | 25 | 100 | 625 | 2500 | 10000 |
Cow Manure (kg) | 15 | 60 | 240 | 1500 | 6000 | 24000 |
Chicken Manure (kg) | 6.5 | 26 | 104 | 650 | 2600 | 10400 |
Human Manure (kg) | 8 | 32 | 128 | 800 | 3200 | 12800 |
Vegetable (kg) | 16.25 | 65 | 260 | 1625 | 6500 | 26000 |
Electric Generated (Kwh) | 0.75 | 3 | 12 | 75 | 300 | 1200 |
Operating Team | 2 persons | 2 persons | 2 persons | 2 persons | 2 persons | 2 persons |
Addition Equipment (Optional) | Electric Generator 1KVA | Electric Generator 1KVA | Electric Generator 3KVA | Electric Generator 5KVA | Electric Generator 8KVA | Electric Generator 11KVA |
Desurfurization Device | Desurfurization Device | Desurfurization Device | Desurfurization Device | Desurfurization Device | Desurfurization Device | |
Gas Pump | Gas Pump | Gas Pump | Gas Pump | Gas Pump | Gas Pump |
